Binaryworld - Check Access Rights to File/Directory on NTFS Volume ... [ VB -> Security ]

Windows NT/2000/XP has API function AccessCheck, which in fact checks access rights to every operating system object, which supports access rights. This function is called implicitly by system every time user accesses such object. To call AccessCheck function explicitly it is necessary to carry out a whole series of operations with data structures responsible for OS security and call some other functions.

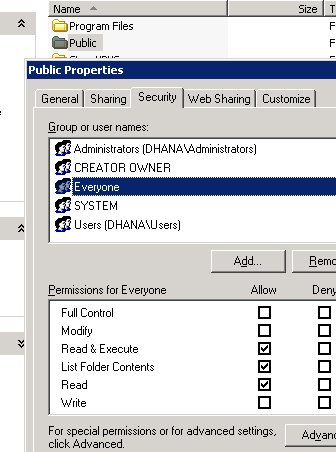

To demonstrate this example I created a sample folder C:\Public. I modified permission for "Everyone".

To implement Quick Copy/paste Demo perform the following steps

- Create a standard exe project
- Place one command button and textbox on form1
- Add module

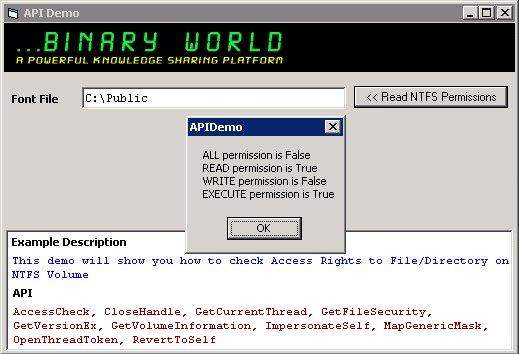

- Run project.. Enter File or Directory path in text1
- Press Command1 to check Read/Write/Execute/All permission

Code for Form1.frm

Click here to copy the following block

Dim AccessRead As Boolean, AccessWrite As Boolean, AccessExecute As Boolean, AccessAll As Boolean

'//////////////////////////////////////////////////////////////////////////
'CheckFileAccess function checks access rights to given file.
'DesiredAccess - bitmask of desired access rights.
'The function returns bitmask, which contains those bits of desired bitmask,
'which correspond with existing access rights.
'//////////////////////////////////////////////////////////////////////////
Private Function CheckFileAccess(Filename As String, ByVal DesiredAccess As Long) As Long
  Dim r As Long, SecDesc() As Byte, SDSize As Long, hToken As Long
  Dim PrivSet As PRIVILEGE_SET, GenMap As GENERIC_MAPPING
  Dim Volume As String, FSFlags As Long

  ' Checking OS type
  If Not IsNT() Then
    ' Rights not supported. Returning -1.
    CheckFileAccess = -1
    Exit Function
  End If

  ' Checking access rights support by file system
  If Left$(Filename, 2) = "\\" Then
    ' Path in UNC format. Extracting share name from it
    r = InStr(3, Filename, "\")
    If r = 0 Then
      Volume = Filename & "\"
    Else
      Volume = Left$(Filename, r)
    End If
  ElseIf Mid$(Filename, 2, 2) = ":\" Then
    ' Path begins with drive letter
    Volume = Left$(Filename, 3)
    'Else
    ' If path not set, we are leaving Volume blank.
    ' It retutns information about current drive.
  End If

  ' Getting information about drive
  GetVolumeInformation Volume, vbNullString, 0, ByVal 0&, _
      ByVal 0&, FSFlags, vbNullString, 0

  If (FSFlags And FS_PERSISTENT_ACLS) = 0 Then
    ' Rights not supported. Returning -1.
    CheckFileAccess = -1
    Exit Function
  End If

  ' Determination of buffer size
  GetFileSecurity Filename, OWNER_SECURITY_INFORMATION _
      Or GROUP_SECURITY_INFORMATION _
      Or DACL_SECURITY_INFORMATION, 0, 0, SDSize

  If Err.LastDllError <> 122 Then
    ' Rights not supported. Returning -1.
    CheckFileAccess = -1
    Exit Function
  End If

  If SDSize = 0 Then Exit Function
  ' Buffer allocation
  ReDim SecDesc(1 To SDSize)
  ' Once more call of function
  ' to obtain Security Descriptor
  If GetFileSecurity(Filename, OWNER_SECURITY_INFORMATION _
      Or GROUP_SECURITY_INFORMATION _
      Or DACL_SECURITY_INFORMATION, _
      SecDesc(1), SDSize, SDSize) = 0 Then
    ' Error. We must return no access rights.
    Exit Function
  End If

  ' Adding Impersonation Token for thread
  ImpersonateSelf SecurityImpersonation

  ' Opening of Token of current thread
  OpenThreadToken GetCurrentThread(), TOKEN_QUERY, 0, hToken

  If hToken <> 0 Then
    ' Filling GenericMask type
    GenMap.GenericRead = FILE_GENERIC_READ
    GenMap.GenericWrite = FILE_GENERIC_WRITE
    GenMap.GenericExecute = FILE_GENERIC_EXECUTE
    GenMap.GenericAll = FILE_ALL_ACCESS
    ' Conversion of generic rights to specific file access rights
    MapGenericMask DesiredAccess, GenMap
    ' Checking access
    AccessCheck SecDesc(1), hToken, DesiredAccess, GenMap, _
        PrivSet, Len(PrivSet), CheckFileAccess, r
    CloseHandle hToken
  End If

  ' Deleting Impersonation Token
  RevertToSelf

End Function

'*********************************************************
' IsNT() function returns True, if the program works
' in Windows NT/Windows 2000/Windows XP operating system, and False otherwise.
Private Function IsNT() As Boolean
  Dim OSVer As OSVERSIONINFO
  OSVer.dwOSVersionInfoSize = Len(OSVer)
  GetVersionEx OSVer
  IsNT = (OSVer.dwPlatformId = VER_PLATFORM_WIN32_NT)
End Function
'*********************************************************

Private Sub Command1_Click()

  AccessRead = CheckFileAccess(Text1, FILE_GENERIC_READ) = FILE_GENERIC_READ
  AccessWrite = CheckFileAccess(Text1, FILE_GENERIC_WRITE) = FILE_GENERIC_WRITE
  AccessExecute = CheckFileAccess(Text1, FILE_GENERIC_EXECUTE) = FILE_GENERIC_EXECUTE
  AccessAll = CheckFileAccess(Text1, FILE_ALL_ACCESS) = FILE_ALL_ACCESS

  s = "ALL permission is " & AccessAll & vbCrLf
  s = s & "READ permission is " & AccessRead & vbCrLf
  s = s & "WRITE permission is " & AccessWrite & vbCrLf
  s = s & "EXECUTE permission is " & AccessExecute & vbCrLf

  MsgBox s
End Sub

Code for Module1.bas

Click here to copy the following block

Option Explicit

' Desired access rights constants
Public Const MAXIMUM_ALLOWED As Long = &H2000000
Public Const DELETE As Long = &H10000
Public Const READ_CONTROL As Long = &H20000
Public Const WRITE_DAC As Long = &H40000
Public Const WRITE_OWNER As Long = &H80000
Public Const SYNCHRONIZE As Long = &H100000

Public Const STANDARD_RIGHTS_READ As Long = READ_CONTROL
Public Const STANDARD_RIGHTS_WRITE As Long = READ_CONTROL
Public Const STANDARD_RIGHTS_EXECUTE As Long = READ_CONTROL
Public Const STANDARD_RIGHTS_REQUIRED As Long = &HF0000

Public Const FILE_READ_DATA As Long = &H1         ' file & pipe
Public Const FILE_LIST_DIRECTORY As Long = &H1       ' directory
Public Const FILE_ADD_FILE As Long = &H2          ' directory
Public Const FILE_WRITE_DATA As Long = &H2         ' file & pipe
Public Const FILE_CREATE_PIPE_INSTANCE As Long = &H4    ' named pipe
Public Const FILE_ADD_SUBDIRECTORY As Long = &H4      ' directory
Public Const FILE_APPEND_DATA As Long = &H4        ' file
Public Const FILE_READ_EA As Long = &H8          ' file & directory
Public Const FILE_READ_PROPERTIES As Long = FILE_READ_EA
Public Const FILE_WRITE_EA As Long = &H10         ' file & directory
Public Const FILE_WRITE_PROPERTIES As Long = FILE_WRITE_EA
Public Const FILE_EXECUTE As Long = &H20          ' file
Public Const FILE_TRAVERSE As Long = &H20         ' directory
Public Const FILE_DELETE_CHILD As Long = &H40       ' directory
Public Const FILE_READ_ATTRIBUTES As Long = &H80      ' all
Public Const FILE_WRITE_ATTRIBUTES As Long = &H100     ' all

Public Const FILE_GENERIC_READ As Long = (STANDARD_RIGHTS_READ _
    Or FILE_READ_DATA Or FILE_READ_ATTRIBUTES _
    Or FILE_READ_EA Or SYNCHRONIZE)

Public Const FILE_GENERIC_WRITE As Long = (STANDARD_RIGHTS_WRITE _
    Or FILE_WRITE_DATA Or FILE_WRITE_ATTRIBUTES _
    Or FILE_WRITE_EA Or FILE_APPEND_DATA Or SYNCHRONIZE)

Public Const FILE_GENERIC_EXECUTE As Long = (STANDARD_RIGHTS_EXECUTE _
    Or FILE_READ_ATTRIBUTES Or FILE_EXECUTE Or SYNCHRONIZE)

Public Const FILE_ALL_ACCESS As Long = (STANDARD_RIGHTS_REQUIRED _
    Or SYNCHRONIZE Or &H1FF&)

Public Const GENERIC_READ As Long = &H80000000
Public Const GENERIC_WRITE As Long = &H40000000
Public Const GENERIC_EXECUTE As Long = &H20000000
Public Const GENERIC_ALL As Long = &H10000000

' Types, constants and functions
' to work with access rights
Public Const OWNER_SECURITY_INFORMATION As Long = &H1
Public Const GROUP_SECURITY_INFORMATION As Long = &H2
Public Const DACL_SECURITY_INFORMATION As Long = &H4
Public Const TOKEN_QUERY As Long = 8
Public Const SecurityImpersonation As Integer = 3
Public Const ANYSIZE_ARRAY = 1

Public Type GENERIC_MAPPING
  GenericRead As Long
  GenericWrite As Long
  GenericExecute As Long
  GenericAll As Long
End Type

Public Type LUID
  LowPart As Long
  HighPart As Long
End Type

Public Type LUID_AND_ATTRIBUTES
  pLuid As LUID
  Attributes As Long
End Type

Public Type PRIVILEGE_SET
  PrivilegeCount As Long
  Control As Long
  Privilege(ANYSIZE_ARRAY) As LUID_AND_ATTRIBUTES
End Type

Public Declare Function GetFileSecurity Lib "advapi32.dll" _
    Alias "GetFileSecurityA" (ByVal lpFileName As String, _
    ByVal RequestedInformation As Long, pSecurityDescriptor As Byte, _
    ByVal nLength As Long, lpnLengthNeeded As Long) As Long

Public Declare Function AccessCheck Lib "advapi32.dll" _
    (pSecurityDescriptor As Byte, ByVal ClientToken As Long, _
    ByVal DesiredAccess As Long, GenericMapping As GENERIC_MAPPING, _
    PrivilegeSet As PRIVILEGE_SET, PrivilegeSetLength As Long, _
    GrantedAccess As Long, Status As Long) As Long

Public Declare Function ImpersonateSelf Lib "advapi32.dll" _
    (ByVal ImpersonationLevel As Integer) As Long

Public Declare Function RevertToSelf Lib "advapi32.dll" () As Long

Public Declare Sub MapGenericMask Lib "advapi32.dll" (AccessMask As Long, _
    GenericMapping As GENERIC_MAPPING)

Public Declare Function OpenThreadToken Lib "advapi32.dll" _
    (ByVal ThreadHandle As Long, ByVal DesiredAccess As Long, _
    ByVal OpenAsSelf As Long, TokenHandle As Long) As Long

Public Declare Function GetCurrentThread Lib "kernel32" () As Long

Public Declare Function CloseHandle Lib "kernel32" _
    (ByVal hObject As Long) As Long

' Types, constants and functions for OS version detection
Public Type OSVERSIONINFO
  dwOSVersionInfoSize As Long
  dwMajorVersion As Long
  dwMinorVersion As Long
  dwBuildNumber As Long
  dwPlatformId As Long
  szCSDVersion As String * 128
End Type

Public Const VER_PLATFORM_WIN32_NT As Long = 2

Public Declare Function GetVersionEx Lib "kernel32" Alias "GetVersionExA" _
    (lpVersionInformation As OSVERSIONINFO) As Long

' Constant and function for detection of support
' of access rights by file system
Public Const FS_PERSISTENT_ACLS As Long = &H8

Public Declare Function GetVolumeInformation Lib "kernel32" _
    Alias "GetVolumeInformationA" (ByVal lpRootPathName As String, _
    ByVal lpVolumeNameBuffer As String, ByVal nVolumeNameSize As Long, _
    lpVolumeSerialNumber As Long, lpMaximumComponentLength As Long, _
    lpFileSystemFlags As Long, ByVal lpFileSystemNameBuffer As String, _
    ByVal nFileSystemNameSize As Long) As Long
