Binaryworld - How to load BMP file into memory and perform rotation on it ? ... [ VB -> Bitmap ]

Bitmap rotation is a graphic effect that Visual Basic does not natively offer. This article shows how to rotate a given image in 90-degree increments. It allows you to rotate any image 0, 90, 180 or 270 degrees. With a little work, the code can be modified to rotate to any angle, but that is beyond the scope of this article. .

The following sample uses a function called RotateBitmap. Here is some information about this function:

Click here to copy the following block

RotateBitmap(hBitmapDC As Long, _
lWidth As Long, _
lHeight As Long, _
lRadians As Long)

hBitmapDC: Handle to a device context of the image to be rotated. Upon return, this variable will contain the device context of the rotated image.
lWidth: Width of the incoming image. Upon return contains the width of the rotated image.
lHeight: Height of the incoming image. Upon return, contains the height of the rotated image.
lRadians: Angle to rotate the image (in Radians). The sample shows how to convert degrees into radians on the fly.

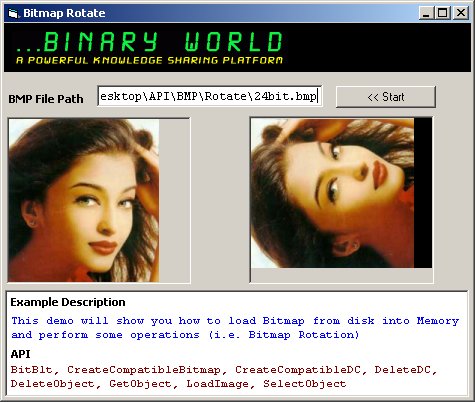

Step-by-Step Example

- Create a new Standard EXE project in Visual Basic. Form1 is created by default.
- Add a Standard Module (Module1) to the project.
- Add the following controls to Form1:

Two PictureBox controls
One Timer control

For the two PictureBox controls, set their AutoRedraw properties to True.
- Copy and paste the following code in the Form's code Window:

Form1.frm

Click here to copy the following block

Option Explicit

Dim sFileName As String   ' filename of the image being used
Dim hBitmap As Long     ' handle to the loaded bitmap
Dim lBMDC As Long      ' device context of the bitmap
Dim sBitmapInfo As BITMAP  ' information on the loaded image
Dim Degrees As Long     ' current rotation degree

Private Sub Command1_Click()
  If Timer1.Enabled = True Then
    Timer1.Enabled = False
    Command1.Caption = "<< Start"
  Else
    Timer1.Enabled = True
    Command1.Caption = "<< Stop"
    Call LoadBMPFromFile
  End If
End Sub

Private Sub Form_Load()
  ' set the timer and turn it on
  Timer1.Interval = 1000
  Timer1.Enabled = False
  Picture2.AutoRedraw = True
  Text1 = App.Path & "\24bit.bmp"

  Call LoadBMPFromFile
End Sub

Sub LoadBMPFromFile()
  ' set staring degrees
  Degrees = 0
  sFileName = Text1.Text
  Picture1.Cls
  Picture2.Cls
  ' set the bitmap that will be used in the sample
  'sFileName = "c:\1_24bit.bmp" ' where filename.bmp is the bitmap
  '              ' being used

  ' load the bitmap into memory
  hBitmap = LoadImage(0, sFileName, IMAGE_BITMAP, 0, 0, _
      LR_LOADFROMFILE Or LR_CREATEDIBSECTION)

  ' make sure the call succeeded
  If (hBitmap = 0) Then
    MsgBox "Error, Unable To Load Bitmap", vbOKOnly, _
        "Bitmap Load Error"
    End
  End If

  ' create a device context to use when blitting the loaded bitmap
  lBMDC = CreateCompatibleDC(0)

  ' make sure our call succeeded
  If (lBMDC = 0) Then
    MsgBox "Error, Unable To Create Device Context", _
        vbOKOnly, "Device Context Error"
    Exit Sub
  End If

  ' attach the bitmap to the device context just created
  Call SelectObject(lBMDC, hBitmap)

  ' get the information about this image
  Call GetObject(hBitmap, Len(sBitmapInfo), sBitmapInfo)

  ' blit the bitmap image onto the picturebox control
  ' on the form to show what is being worked with
  Call BitBlt(Picture1.hdc, 0, 0, sBitmapInfo.bmWidth, _
      sBitmapInfo.bmHeight, lBMDC, 0, 0, SRCCOPY)
  Picture1.Refresh
End Sub
Private Sub Timer1_Timer()
  Dim hRotatedBitmapDC As Long  ' returned DC to the new bitmap
  Dim lWidth As Long    ' current/new width of the bitmaps
  Dim lHeight As Long   ' current/new width of the bitmaps
  Dim lRadians As Long   ' the degrees will be converted to
  ' - radians
  ' get the width/height of the original bitmap image
  lWidth = sBitmapInfo.bmWidth
  lHeight = sBitmapInfo.bmHeight

  ' convert the rotation degrees into radians for the
  ' rotate function
  lRadians = PI * Degrees / 180

  ' set the input var to the current bitmaps DC
  hRotatedBitmapDC = Picture1.hdc

  ' rotate the bitmap to its new degree
  RotateBitmap hRotatedBitmapDC, lWidth, lHeight, lRadians

  ' clear the second picturebox to show the rotated image
  Set Picture2.Picture = LoadPicture

  ' blit the rotated image
  Call BitBlt(Picture2.hdc, 0, 0, lWidth, lHeight, _
      hRotatedBitmapDC, 0, 0, SRCCOPY)
  Picture2.Refresh

  ' destroy the DC created for the rotated bitmap
  Call DeleteDC(hRotatedBitmapDC)

  ' increase the degree count, or reset if we have come full circle
  Degrees = Degrees + 90
  If Degrees = 360 Then
    Degrees = 0
  End If
End Sub

- Add the following code to the Standard Module (Module1):

Module1.bas

Click here to copy the following block

Option Explicit

' refer to the MSDN for more detailed information regarding the
' constants used in this sample.
Public Const IMAGE_BITMAP = &O0  ' used with LoadImage to load
' a bitmap
Public Const LR_LOADFROMFILE = 16  ' used with LoadImage
Public Const LR_CREATEDIBSECTION = 8192  ' used with LoadImage
Public Const SRCCOPY = &HCC0020  ' (DWORD) dest = source
Public Const PI = 3.14159

' Refer to the MSDN for more detailed information regarding the
' structures used in this sample.
   Type BITMAP '14 bytes
  bmType As Long
  bmWidth As Long
  bmHeight As Long
  bmWidthBytes As Long
  bmPlanes As Integer
  bmBitsPixel As Integer
  bmBits As Long
End Type

' Refer to the MSDN for more detailed information regarding the API's
' used in this sample.

Declare Function LoadImage Lib "user32" Alias "LoadImageA" _
    (ByVal hInst As Long, ByVal lpsz As String, ByVal un1 As Long, _
    ByVal n1 As Long, ByVal n2 As Long, ByVal un2 As Long) As Long

Declare Function CreateCompatibleDC Lib "gdi32" _
    (ByVal hdc As Long) As Long

Declare Function SelectObject Lib "gdi32" _
    (ByVal hdc As Long, ByVal hObject As Long) As Long

Declare Function BitBlt Lib "gdi32" (ByVal hDestDC As Long, _
    ByVal X As Long, ByVal Y As Long, ByVal nWidth As Long, _
    ByVal nHeight As Long, ByVal hSrcDC As Long, ByVal xSrc As Long, _
    ByVal ySrc As Long, ByVal dwRop As Long) As Long

Declare Function GetObject Lib "gdi32" Alias "GetObjectA" _
    (ByVal hObject As Long, ByVal nCount As Long, lpObject As Any) As Long

Declare Function CreateCompatibleBitmap Lib "gdi32" _
    (ByVal hdc As Long, ByVal nWidth As Long, ByVal nHeight As Long) As Long

Declare Function DeleteDC Lib "gdi32" (ByVal hdc As Long) As Long

Declare Function DeleteObject Lib "gdi32" _
    (ByVal hObject As Long) As Long

Public Sub RotateBitmap(hBitmapDC As Long, lWidth As Long, _
     lHeight As Long, lRadians As Long)

  Dim hNewBitmapDC As Long ' DC of the new bitmap
  Dim hNewBitmap As Long ' handle to the new bitmap
  Dim lSine As Long    ' sine used in rotation
  Dim lCosine As Long   ' cosine used in rotation
  Dim X1 As Long      ' used in calculating new
               ' bitmap dimensions
  Dim X2 As Long      ' used in calculating new
               ' bitmap dimensions
  Dim X3 As Long      ' used in calculating new
               ' bitmap dimensions
  Dim Y1 As Long      ' used in calculating new
               ' bitmap dimensions
  Dim Y2 As Long      ' used in calculating new
               ' bitmap dimensions
  Dim Y3 As Long      ' used in calculating new
               ' bitmap dimensions
  Dim lMinX As Long    ' used in calculating new
               ' bitmap dimensions
  Dim lMaxX As Long    ' used in calculating new
               ' bitmap dimensions
  Dim lMinY As Long    ' used in calculating new
               ' bitmap dimensions
  Dim lMaxY As Long    ' used in calculating new
               ' bitmap dimensions
  Dim lNewWidth As Long  ' width of new bitmap
  Dim lNewHeight As Long ' height of new bitmap
  Dim I As Long      ' loop counter
  Dim J As Long      ' loop counter
  Dim lSourceX As Long   ' x pixel coord we are blitting
               ' from the source image
  Dim lSourceY As Long   ' y pixel coord we are blitting
               ' from the source image

  ' create a compatible DC from the one just brought
  ' into this function
  hNewBitmapDC = CreateCompatibleDC(hBitmapDC)

  ' compute the sine/cosinse of the radians used to
  ' rotate this image
  lSine = Sin(lRadians)
  lCosine = Cos(lRadians)

  ' compute the size of the new bitmap being created
  X1 = -lHeight * lSine
  Y1 = lHeight * lCosine
  X2 = lWidth * lCosine - lHeight * lSine
  Y2 = lHeight * lCosine + lWidth * lSine
  X3 = lWidth * lCosine
  Y3 = lWidth * lSine

  ' figure out the max/min size of the new bitmap
  lMinX = Min(0, Min(X1, Min(X2, X3)))
  lMinY = Min(0, Min(Y1, Min(Y2, Y3)))
  lMaxX = Max(X1, Max(X2, X3))
  lMaxY = Max(Y1, Max(Y2, Y3))

  ' set the new bitmap width/height
  lNewWidth = lMaxX - lMinX
  lNewHeight = lMaxY - lMinY

  ' create a new bitmap based upon the new width/height of the
  ' rotated bitmap
  hNewBitmap = CreateCompatibleBitmap _
      (hBitmapDC, lNewWidth, lNewHeight)

  ' attach the new bitmap to the new device context created
  ' above before constructing the rotated bitmap
  Call SelectObject(hNewBitmapDC, hNewBitmap)

  ' loop through and translate each pixel to its new location.
  ' this is using a standard rotation algorithm
  For I = 0 To lNewHeight
    For J = 0 To lNewWidth
      lSourceX = (J + lMinX) * lCosine + (I + lMinY) * lSine
      lSourceY = (I + lMinY) * lCosine - (J + lMinX) * lSine
      If (lSourceX >= 0) And (lSourceX <= lWidth) And _
          (lSourceY >= 0) And (lSourceY <= lHeight) Then
        Call BitBlt(hNewBitmapDC, J, I, 1, 1, hBitmapDC, _
            lSourceX, lSourceY, SRCCOPY)
      End If
    Next J
  Next I

  ' reset the new bitmap width and height
  lWidth = lNewWidth
  lHeight = lNewHeight

  ' return the DC to the new bitmap
  hBitmapDC = hNewBitmapDC

  ' destroy the bitmap created
  Call DeleteObject(hNewBitmap)
End Sub

Private Function Min(X1 As Long, Y1 As Long) As Long
  If X1 >= Y1 Then
    Min = Y1
  Else
    Min = X1
  End If
End Function

Private Function Max(X1 As Long, Y1 As Long) As Long
  If X1 >= Y1 Then
    Max = X1
  Else
    Max = Y1
  End If
End Function
