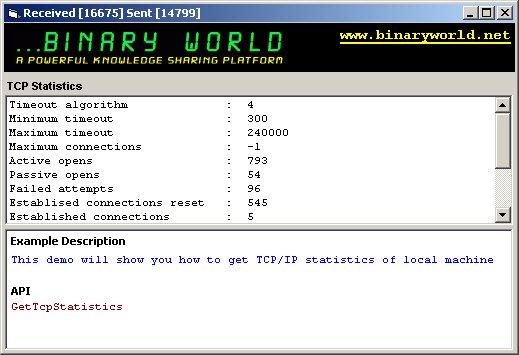

Binaryworld - How to retrive TCP Statistics for local machine using GetTcpStatistics ... [ VB -> Networking ]

Step-By-Step Example

- Create a standard exe project
- Add one timer and one listbox control on the form1
- Add the following code in form1

Click here to copy the following block

'user defined type required by GetTcpStatistics API call
Private Type MIB_TCPSTATS
  dwRtoAlgorithm As Long  '// timeout algorithm
  dwRtoMin As Long  '// minimum timeout
  dwRtoMax As Long  '// maximum timeout
  dwMaxConn As Long  '// maximum connections
  dwActiveOpens As Long  '// active opens
  dwPassiveOpens As Long  '// passive opens
  dwAttemptFails As Long  '// failed attempts
  dwEstabResets As Long  '// establised connections reset
  dwCurrEstab As Long  '// established connections
  dwInSegs As Long  '// segments received
  dwOutSegs As Long  '// segment sent
  dwRetransSegs As Long  '// segments retransmitted
  dwInErrs As Long  '// incoming errors
  dwOutRsts As Long  '// outgoing resets
  dwNumConns As Long  '// cumulative connections
End Type

Private Declare Function GetTcpStatistics Lib "iphlpapi.dll" ( _
    pStats As MIB_TCPSTATS) As Long

Private Sub Form_Load()
  Timer1.Enabled = True
  Timer1.Interval = 1000
End Sub

Private Sub Timer1_Timer()
  UpdateStats
End Sub

Private Sub UpdateStats()
  Dim arrInfo(14) As String
  Dim arrLablels(14) As String * 30
  Dim tStats     As MIB_TCPSTATS
  Dim lRetValue As Long
  Dim blnIsSent As Boolean
  Dim blnIsRecv As Boolean

  List1.Clear

  lRetValue = GetTcpStatistics(tStats)

  arrLablels(0) = "Timeout algorithm"
  arrLablels(1) = "Minimum timeout"
  arrLablels(2) = "Maximum timeout"
  arrLablels(3) = "Maximum connections"
  arrLablels(4) = "Active opens"
  arrLablels(5) = "Passive opens"
  arrLablels(6) = "Failed attempts"
  arrLablels(7) = "Establised connections reset"
  arrLablels(8) = "Established connections"
  arrLablels(9) = "Segments received"
  arrLablels(10) = "Segment sent"
  arrLablels(11) = "Segments retransmitted"
  arrLablels(12) = "Incoming errors"
  arrLablels(13) = "Outgoing resets"
  arrLablels(14) = "Cumulative connections"

  With tStats
    arrInfo(0) = .dwRtoAlgorithm
    arrInfo(1) = .dwRtoMin
    arrInfo(2) = .dwRtoMax
    arrInfo(3) = .dwMaxConn
    arrInfo(4) = .dwActiveOpens
    arrInfo(5) = .dwPassiveOpens
    arrInfo(6) = .dwAttemptFails
    arrInfo(7) = .dwEstabResets
    arrInfo(8) = .dwCurrEstab
    arrInfo(9) = .dwInSegs
    arrInfo(10) = .dwOutSegs
    arrInfo(11) = .dwRetransSegs
    arrInfo(12) = .dwInErrs
    arrInfo(13) = .dwOutRsts
    arrInfo(14) = .dwNumConns
  End With

  Me.Caption = "Received [" & tStats.dwInSegs & "] " & "Sent [" & tStats.dwOutSegs & "]"

  For i = 0 To 14
    List1.AddItem arrLablels(i) & " : " & arrInfo(i)
  Next
End Sub
